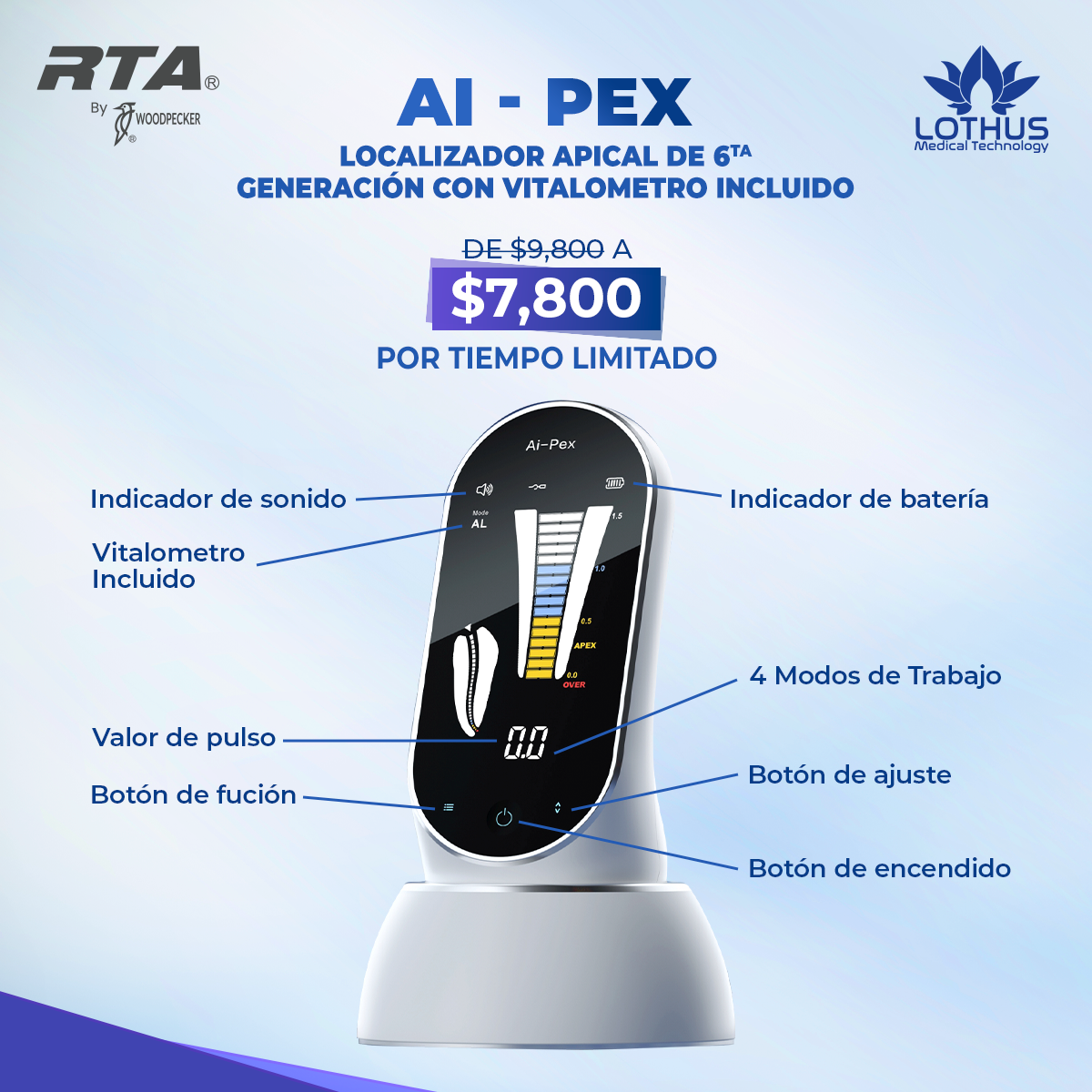

Woodpecker Ai-Pex Apex Locator

He Woodpecker Aipex Apex Locator It is a locator with pulp test . It has an advanced technology system Multi-frequency DSP with which it ensures a Greater precision and measurement .

It has an innovative and elegant design with a large screen Multicolor LCD and one magnetic base which allows for wider movement.

It has a system of Sound Feedback with which the intervention is made simpler and more agile.

Features of the Ai-Pex Apex Locator:

• Technology multi-frequency DSP to obtain maximum precision in the measurement and trajectory of the files.
• Measures accurately , even when there is residual blood or pulp in the root canal .
• More stable and stronger anti-interference ability.
• Multicolor LCD display 3.8 inches for easy reading.
• Engine compatible Endo Smart Plus.
• The base has a magnetic hold which allows the ideal placement of the screen by being able to rotate at an angle of 360º.
• System of automatic calibration which ensures more accurate measures.
• Their Accessories are autoclavable .
• It has a Sound feedback in which if the measurement recorded is less than 1.5 it will emit a low frequency sound. The closer you get to the tip of the apex, the higher the frequency. Once it reaches the apex, it will emit a constant sound with a high frequency. The sound is adjustable.
• It has a new digital circuit. It has a new central chip with a high-precision 0.1% DSP processor module (USA), increasing its processing capacity to 2,125 times.
• By connecting the Ai-Pex to an Endo Motor that can be connected to an Apex Locator, the position of the file in the root canal can be observed in real time during an intervention.

Technical specifications of the Ai-Pex Apex Locator:

• Working time: 5 h and 20 min.
• Charging time: 3 hours.
• Battery: 3.7V/2000mAh.
• Power: 100V-240V 50Hz/60Hz 0.4A.
• Consumption: <0.5W.
• Weight: 685 gr.
• Dimensions: 101mm x 101mm x 175.5mm.
• 2-year warranty on the unit and 6 months on accessories, battery and charger .

Contents of the Ai-Pex Apex Locator:

• 1 measurement cable.
• 4 lip clips.
• 5 lip hooks.
• 2 test leads.
• 2 pulp test tips.
• 1 tester.
• 1 charger.
